Moto Mods Development Kit

← Back to Products

Moto Mods Development Kit

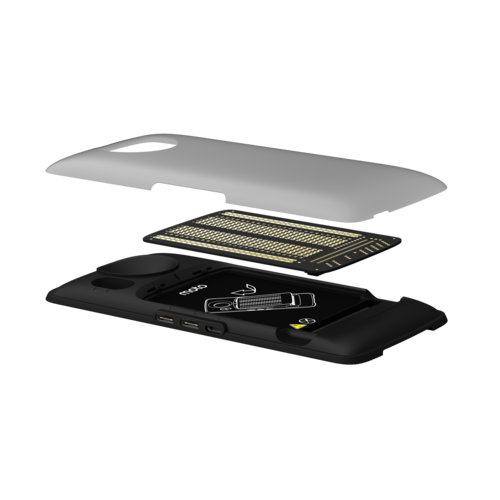

Exploded View.png

Moto Mods Development Kit

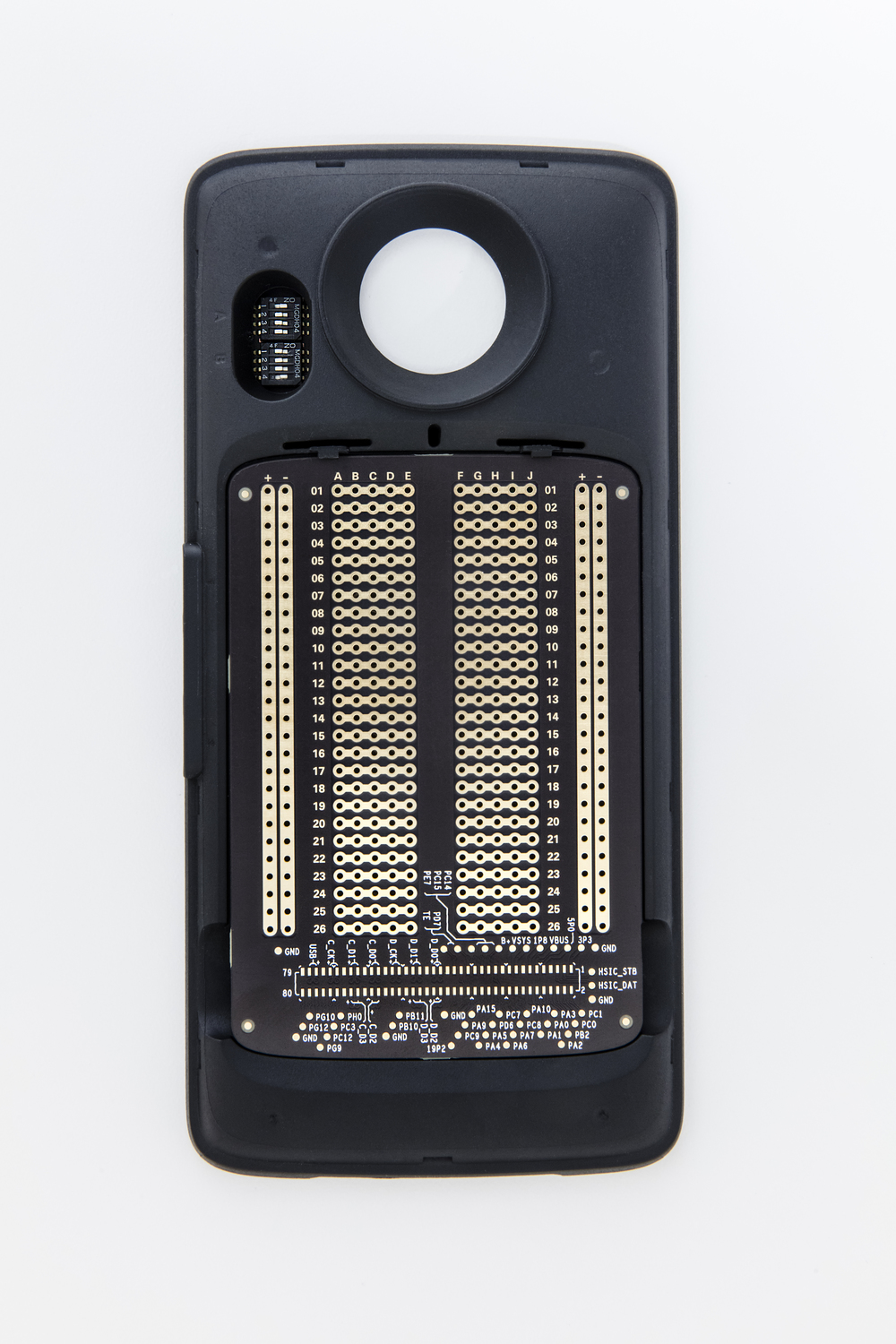

The Moto Mods Development Kit includes a Reference Moto Mod, a Perforated Board for you to solder your own components to, and an example cover. Together with a compatible Moto Z, the MDK is the starting point for developing your own Moto Mod prototype.

On the Reference Moto Mod board, we’ve included a µUSB-B port (can also be used for Mobility Display Port), USB-C, and connector interface that exposes all key interfaces.

The Reference Moto Mod includes:

  • Mechanical and Electrical Interface to enable connection with Moto Z
  • Moto Mod Microprocessor (MuC) with 96k ROM
  • Moto High Speed Bridge
  • 80 pin connector exposing all developer interfaces

Documentation Technical documentation for the MDK can be found at the following pages:

Requirements The Moto Mods Development Kit requires a Moto Z.
